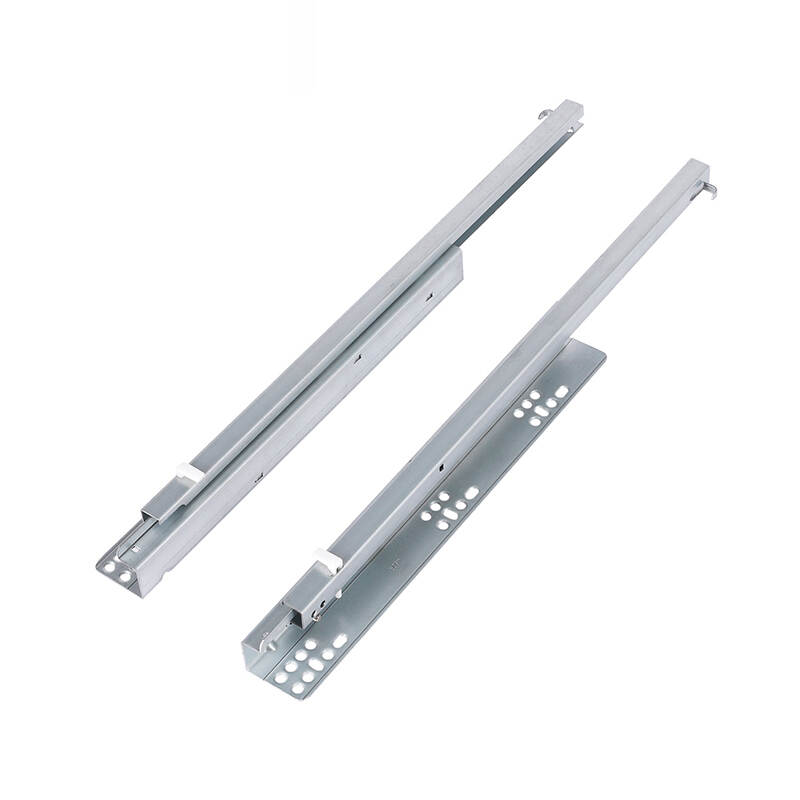

Self-Close Partial Extension Concealed Undermount Slide
Quick Details
OEM：
Available
Sample:
Available
Payment:
Other
Place of Origin：
China
Supply Ability：
500000 unit per month
Quick Details
Shipping fee
Shipping fee
Product Description
Heavy Duty Material: Ball bearing drawer slides work harden cold rolled steel with zinc plated finish will give you precise thickness and smooth surface. Bearing capacity up to 260 lb per pair.
Anti Rust and Ant Corrosion: The electroplated layer can prevent direct contact between the air and the track steel plate, thereby resisting oxidation and corrosion.
Easy to Install and Industrial DIY:3-Fold Full Extension, Side Mount, or Undermount.The slide rail can be disassembled for installation. Suitable for Goods shelves, Mechanical Cabinets, Industry-used drawers, RV, trucks, Vending machines, etc.
Package Includes:1 Pair x Self-Close Partial Extension Concealed Undermount Slides (The mounting brackets and screws are NOT included.)
Warm Tip: You can purchase the required screws according to your slide rail installation scene. The metal pieces are sharp during installation. Please protect your hands. It is recommended to wear gloves for installation. You can contact us at any time if you have any questions, we are always there. Good life.
Drawer slide installation points
1. First of all, we must first figure out the structure of the drawer slide rail, which is divided into three parts: the movable rail, the middle rail, and the fixed rail. Among them, the movable cabinet is the inner rail; the fixed rail is the outer rail.
2. Before the track is installed, we also need to remove the inner track from the drawer slide on the movable cabinet, and then install it on both sides of the drawer. When disassembling, you should be careful not to damage the drawer slides. Although the disassembly method is simple, you must also pay attention.
3. Install the outer cabinet and the middle rail in the split glide path on both sides of the drawer box, and install the inner rail on the side panel of the drawer. There will be reserved screw holes inside the drawer, just find the corresponding upper screws.
4. After all the screws are fixed, the drawer can be pushed into the box. When installing, pay attention to the circlips in the inner rail, and then slowly push the drawer into the bottom of the box in parallel to keep the two sides balanced. If the drawer is pulled out and the drawer slides out directly, it means that the circlip part is not stuck.
