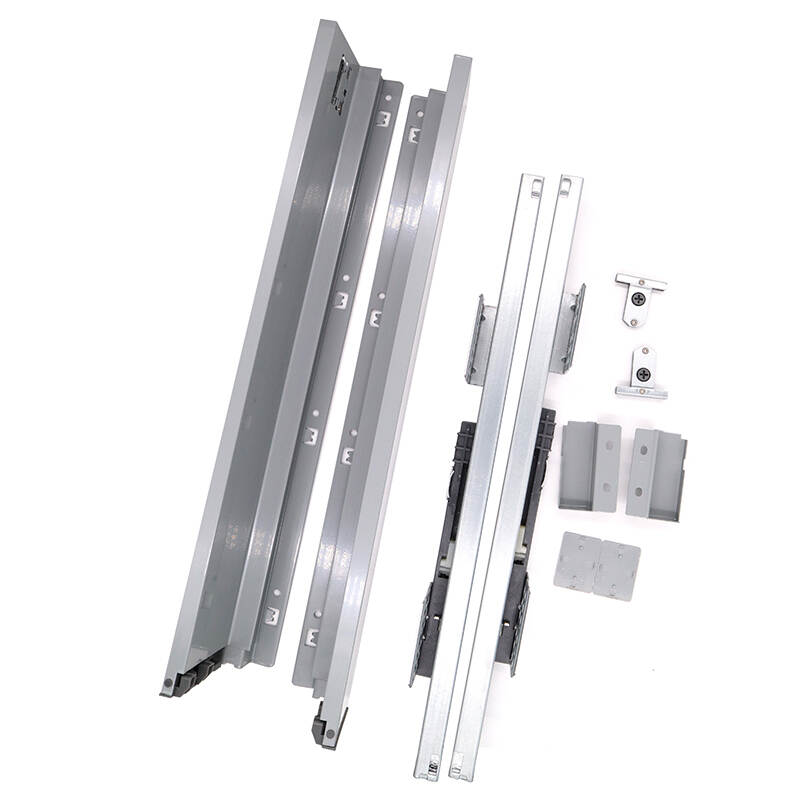

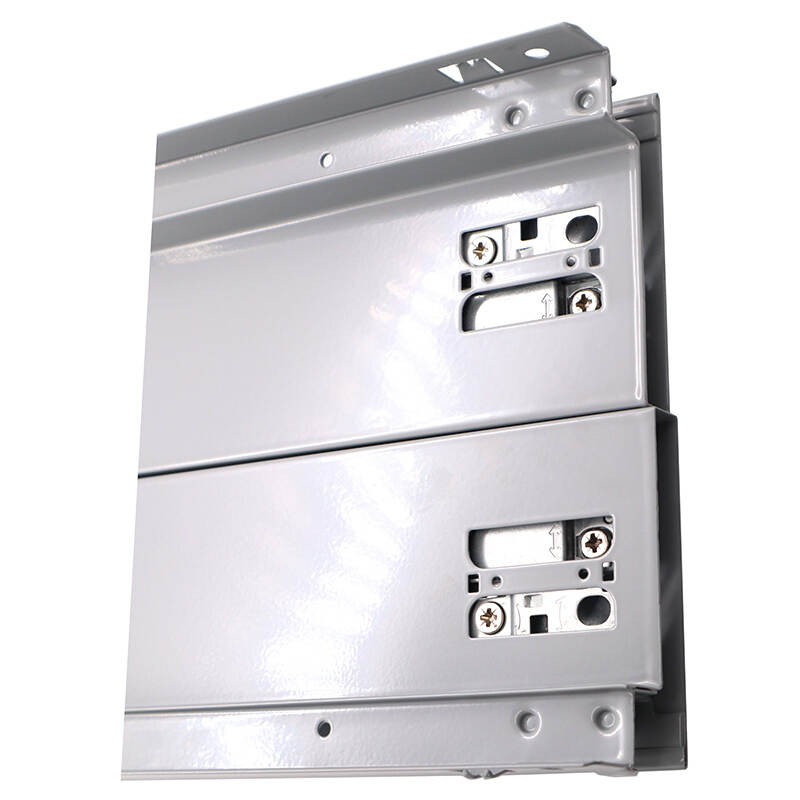

Kitchen Cabinet Tandem Box Drawer Slide Silent Soft Closing Metal Slim Tandem Box
Quick Details
OEM：
Available
Sample:
Available
Payment:
Other
Place of Origin：
China
Supply Ability：
500000 unit per month
Quick Details
Shipping fee
Shipping fee
Product Description
Application: Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Apartment, Office Building
Usage: Cabinet
Type: Cabinet Drawer Slide
Material: Cold rolled steel+ Galvanized Steel
Product name: Slim Tandem Box
Color: Black/Silver White/Silver Grey/Grayish White
Length Range:270-550mm
MOQ: 200 pairs
Loading capacity: 40 KGS
Installation Method: Side mounting
Cycle test: 50000 -60000 Times Open-close
Steel ball bearing
Φ6mm high density of solid steel balls, Loaded and pulled more than 100,000 times, quiet and smooth, long-lasting use.
Detachable design
There is a plastic buckle on the back of the inner rail, which can be removed by pressing down and pulling it out, which is convenient for installation and use.
Double spring pure copper core damper
Push and pull are easier and smoother than single spring pure copper core damper.
Soft/Self-closing function
When the sliding rail touches the damper, the drawer will automatically close slowly.
Installation clearance and step
Installation clearance
Drawers and cabinets need to leave space of 0.76"（19±0.5mm）on both sides to install the slide.
Installation step 1
Fixing the double outer fixing rail horizontally.
Installation step 2
Install the inner fixing rail to the drawer, and lock the middle fixing rail to move in horizontally.
How to remove the hidden drawer slide rail?
1. Pull out the cabinet
For the hidden drawer slides at home, when removing them, you need to know what kind of track the slides are, such as three-section track, two-section track, and so on. Then according to the type of track, pull out the cabinet slowly, but be sure to keep a stable state when pulling out, so that it will not damage the cabinet and the track when pulling out.
2. Loose slide rail
When you pull the drawer out, a long black tapered buckle will appear. Press down the black protruding long buckle with your hand, the long buckle will be stretched, and the slide rail will feel loose.
3. Remove the slide rail
Press down on both sides of the long buckle at the same time, pull both sides outward while pressing the long buckle with both hands, and the drawer will come out.
