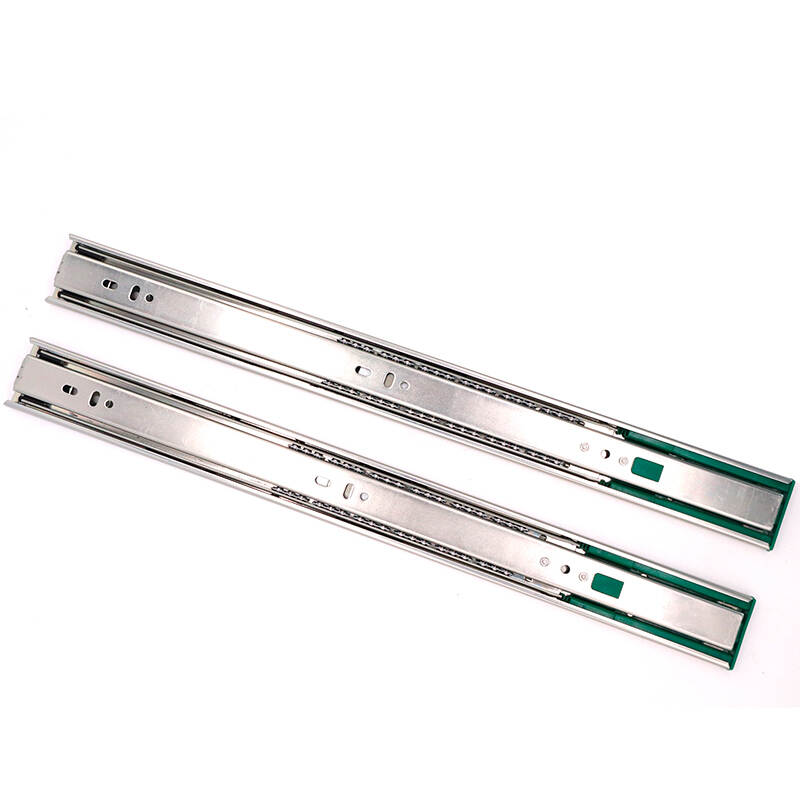

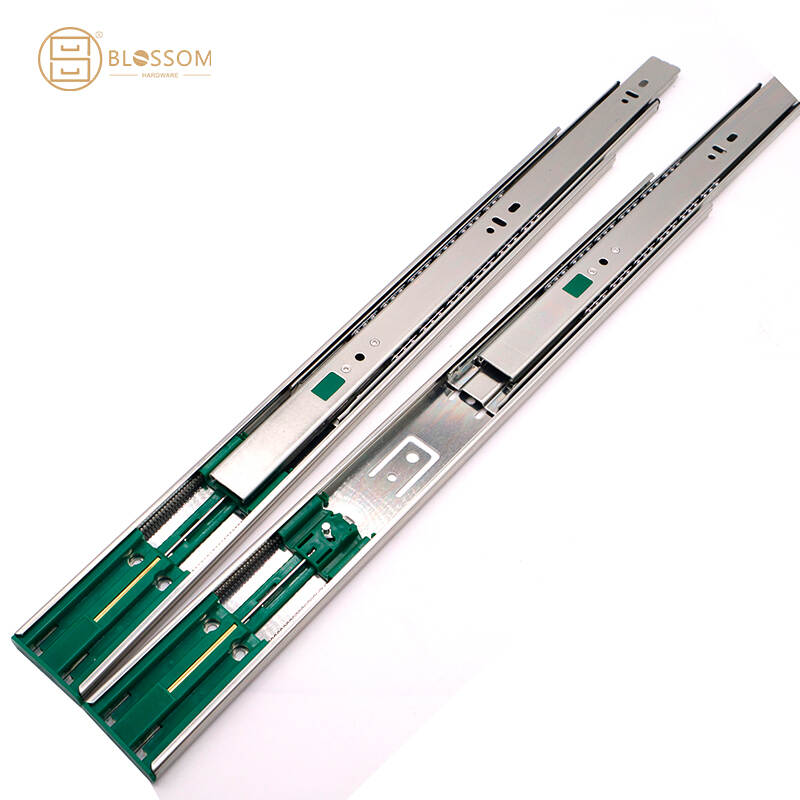

Full Extension 1.75'' Soft Close Side Mount Metal Drawer slide Telescopic Channel Rail
Quick Details
OEM：
Available
Sample:
Available
Payment:
Other
Place of Origin：
China
Supply Ability：
500000 unit per month
Quick Details
Shipping fee
Shipping fee
Product Description
2 times load bearing
Our drawer slides are made of 1mm high-quality cold-rolled steel, and the material is 1 times the thickness of ordinary slides. Full extension drawer slides hold 100 pounds, 40 pounds more than regular slides.
Double anti-rust
The surface of the drawer slide rail is galvanized, which isolates the direct contact between water and air, prevents the slide rail from oxidizing and rusting, and improves corrosion resistance.
30-year service life
Two sets of solid steel balls are used inside the ball bearing drawer slide rail to ensure smooth opening and closing of the slide rail. After testing, the number of smooth openings and closing of the slide rail has reached more than 100,000 times.
Installation Guide
There are 8 screws in the card box at both ends of the product. please push the inner ball bearing to the top of the slide rail first, then connect it with the slide rail. There are electronic installation instructions at the bottom of the link.
Hidden function
The back of the slide rail is designed with a detachable buckle, which is more convenient to install. The rear end of the slide rail is equipped with a rubber mute pad, and the noise is as low as 35 decibels, bringing a more comfortable home experience. If you have any questions, you can contact us in time.
Installation steps
1. Choose the right size slides
Measure the distance from the back of the drawer to the front(excluding the front panel thickness). Length of drawer≥length of slides, tolerance of 0.7in/20mm-1in/30mm is suitable.
2. Separate the slides for installation
Press the black buckle on the back of the slide rail, and the inner track can be separated.
3. Drill cabinet and drawer portions in place
Use the provided screws to mount the slider on each side of the drawer. Drill the outer rail and inner rail to place on each side of the drawer and cabinet wall. Note: Make sure the two side rails are parallel to each other and make sure the drawer portion slides parallel to the cabinet portion slides and on the same level.
4. The installation is complete.
Pull out the middle rail to the end stop, align the inner rail to the middle rail, and push the drawer in.
