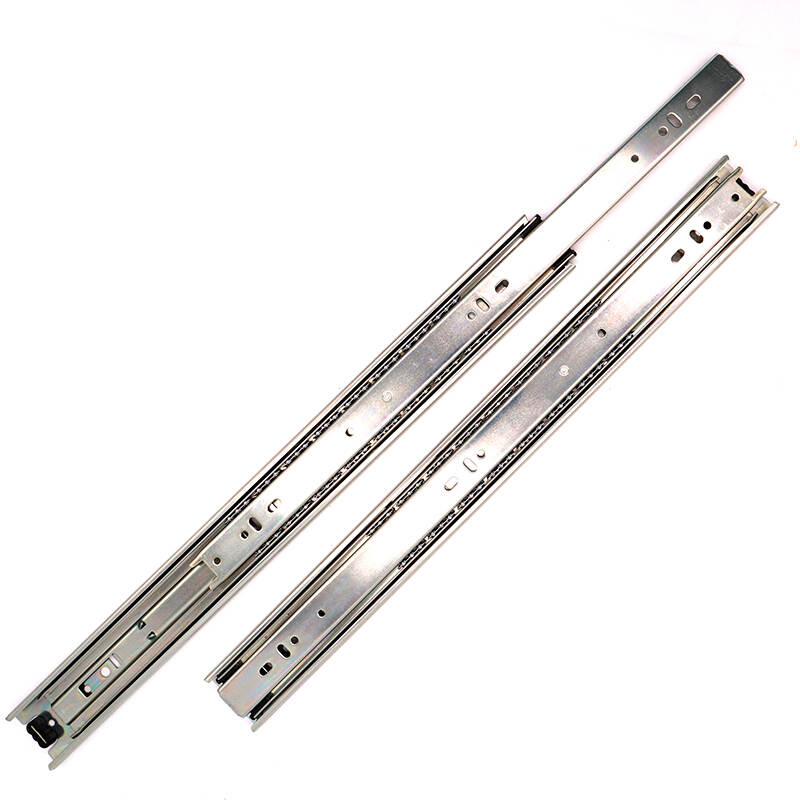

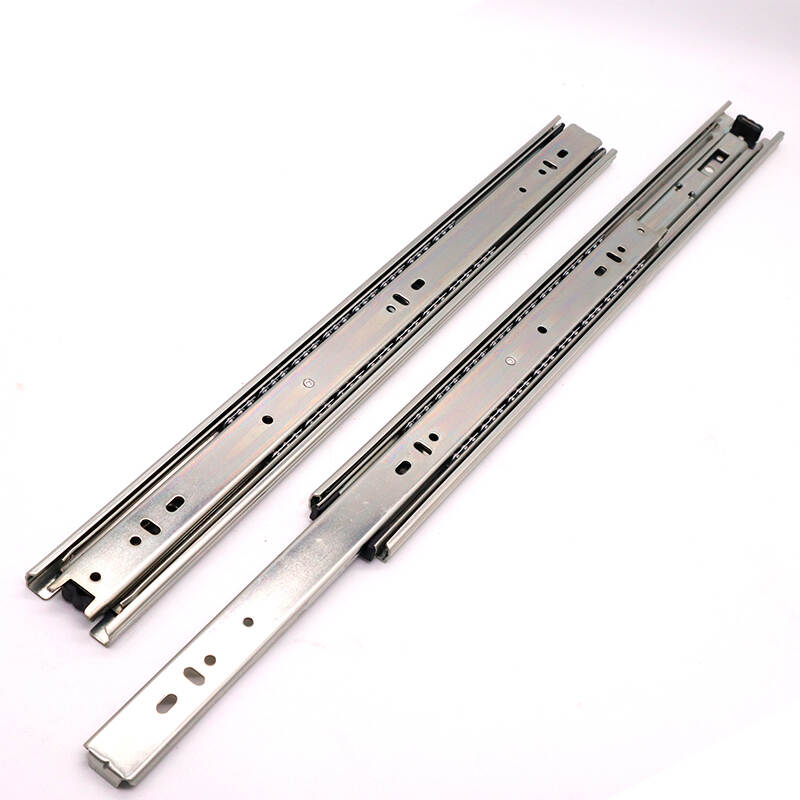

Drawer hardware side mounted ball bearing slide
Quick Details
OEM：
Available
Sample:
Available
Payment:
Other
Place of Origin：
China
Supply Ability：
500000 unit per month
Quick Details
Shipping fee
Shipping fee
Update your drawers with the strength and reliability of these full extension ball bearing drawer slides. They are compatible with most major drawer and cabinet types and are ideal for new construction, remodeling, and replacement projects.
Product Description
Premium Material: The installation method is side-mounted.Made from stamped steel with a zinc-plated finish.Thickness: 1.2mm. Width:45mm.110LBS high load-bearing allows you to install these slides on multiple types of drawers.
Practical Design: Suitable for long cabinet depths of 12-14 inches. The full-extension opening allows for the entire drawer to be accessed. Smooth glide ball-bearing drawer slides less noise at closing and opening.
Installation Tip: The clearance required between the drawer and the drawer opening for these slides is: 1/2” on the left and right sides, 1/4” at the bottom, and 5/8” at the top. Set includes 1 pair of slide rails (Note: including screws), easy installation.
Scope Of Application: This product is suitable for kitchen cabinets, offices, hotels, accommodations, civil furniture, office furniture, closets, etc.
Excellent After-Sale Service: We focus on quality and after-service. If you find any quality problem on our drawer sides, please feel free to contact us, we promise to solve it until you are satisfied. Replacements or other solutions would be provided for you.
Drawer Slides installation steps
1. Locate two horizontal lines at the installation positions on both sides of the cabinet (note: the positioning on both sides must be parallel), and fix the external fixed slide rails on the horizontal lines on both sides with screws;
2. Extend the slide rail completely, press the inner side of the slide rail, remove the buckle, and pull it out to separate it from the external fixed slide rail;
3. Fix the inner fixed guide rails on both sides of the drawer with screws, align the fixed guide rails in the middle, and then slide them in parallel;
4. The installation is complete.
