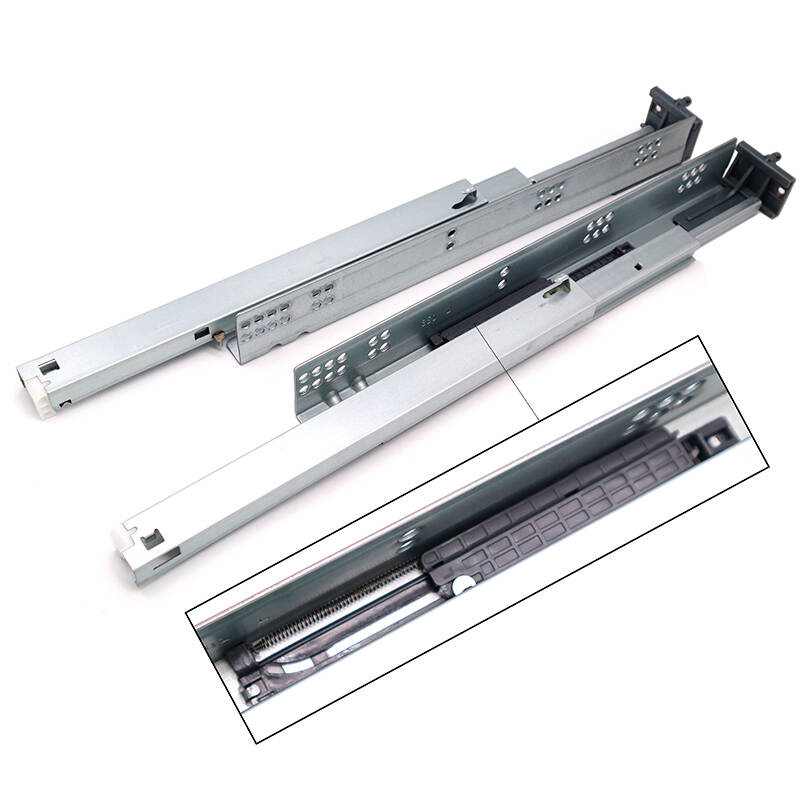

American Soft Close Concealed Drawer Slides Undermount Slide
Quick Details
OEM：
Available
Sample:
Available
Payment:
Other
Place of Origin：
China
Supply Ability：
500000 unit per month
Quick Details
Shipping fee
Shipping fee
Product Description
Rebound design: When you press the drawer cover with your hands or knees, the guide rail will automatically open, eliminating the need for the drawer to install the handle.
3-section rail: hidden 3-section drawer rail, when opening the drawer, all the rails can be stretched out, and the drawer space can be used to a greater extent.
Multi-hole fixing: multiple screw holes are designed for fixing, easy to install. At the same time, drill holes in the corresponding position of the drawer board and hang the hook to avoid falling.
Material: The bottom trailing rail is made of high-quality cold-rolled steel. The material is thick, the structure is firm and stable, and the bearing capacity is strong. It can be used for a long time.
Professional application: Goods shelf, Cabinets, Industry-used drawer, RV, Truck, Vending machine, etc.
Types of drawer slides
Ball slide
At present, it is basically a metal slide rail divided into two sections and three sections, and the installation is relatively simple. The more common structure is to be installed on the side of the drawer, which saves space. Steel ball slides are gradually replacing roller slides, becoming the main force of modern furniture slides, and the usage rate is also the most popular.
Damping slide
The working principle of the damping slide rail is very simple: through the hydraulic cylinder, there is oil in it, when the slide rail faces the limit closing, it forms resistance and has a buffering effect. Damping slides are generally divided into steel ball damping slides, hidden damping slides, riding pumping damping slides, etc., which are generally used in drawers such as cabinets, bathroom cabinets, and furniture.
Slide rail with lock
The slide rail with lock is locked when it is fully closed, and it is also locked when it is fully pulled out. Use some cabinets that need to place stable things. The two-way locking function prevents accidental sliding out. Generally used in industrial machinery, RV transformation, industrial cabinets, electronic equipment, heavy-duty drawers, ATM machines, refrigerators, military systems and other fields.
Roller slide
Such slides have been around for a long time and are the first generation of silent slides. Since 2005, they have been gradually replaced by other slides. It consists of a pulley and two rails, but it has poor bearing capacity and does not have the functions of buffering and rebounding.
