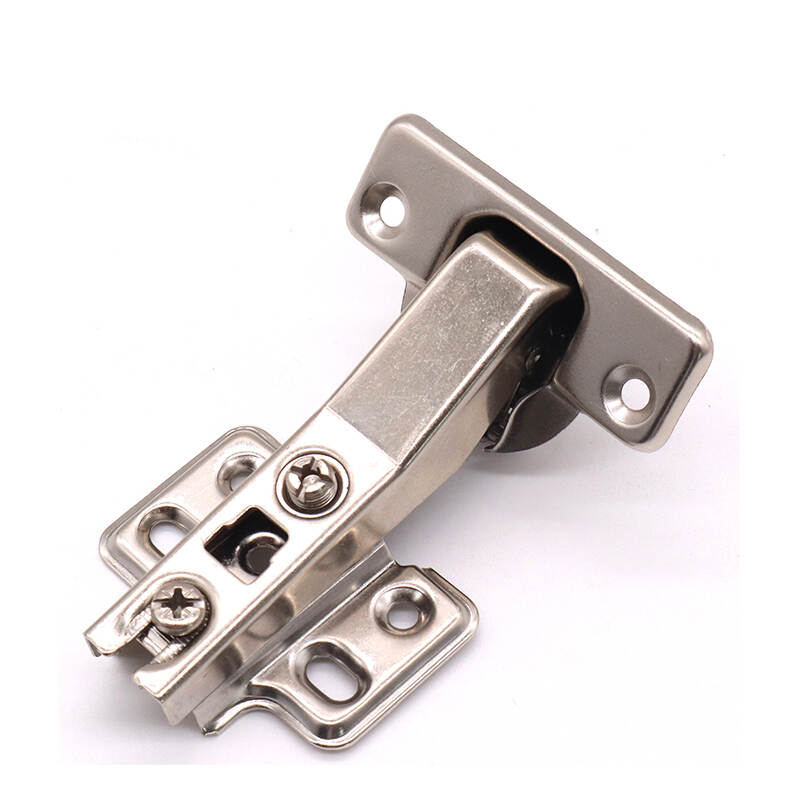

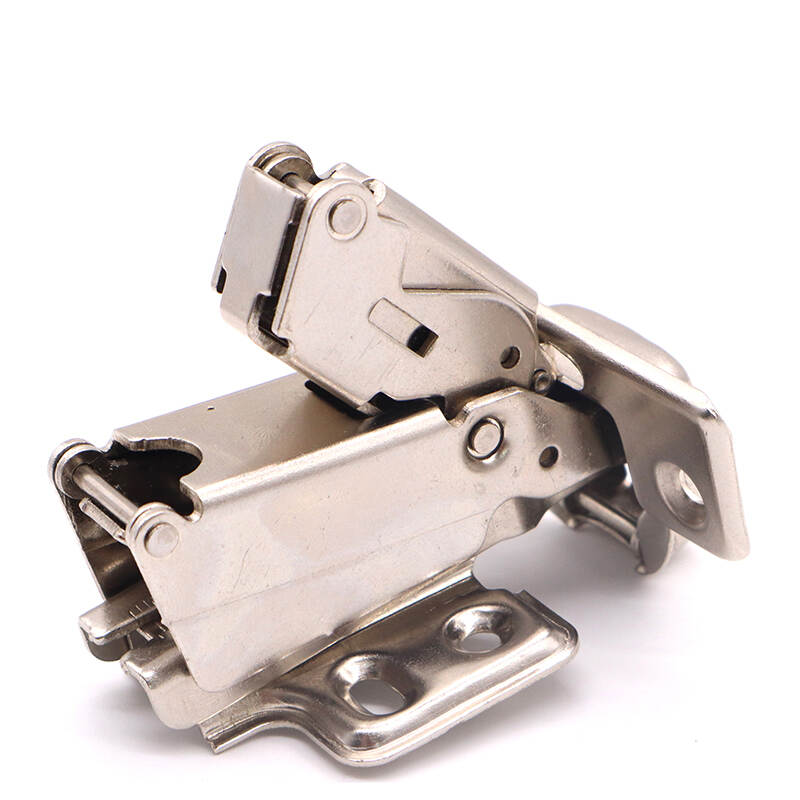

90/135/165degree Furniture Hardware Accessories Cabinet Door Hinge Kitchen Cabinet Hinge Furniture Hinge
Quick Details
OEM：
Available
Sample:
Available
Payment:
Other
Place of Origin：
China
Supply Ability：
500000 unit per month
Quick Details
Shipping fee
Shipping fee
Product Description
MATERIAL: Made from iron with a nickel-plated finish for long-lasting durability.
APPLICATION: Intended for use with face frame and frameless style cabinets; Installation instructions included for easy installation.
FEATURES: An integrated dampening system provides soft-close functionality; a 90/135/165-degree opening angle; 3-way adjustability allows for seamless leveling once installed.
BUY WITH CONFIDENCE: Thank you very much for your great support. Product quality and customer satisfaction is our top priority. If you're not completely satisfied with anything you get from us, contact us and we'll make it right.
Common cabinet hinge styles
1. European hinges
European-style hinges (designed for frameless cabinets popular in Europe) come in a range of sizes made to fit inset, partial, and full overlay-style doors. They offer greater room for adjustments and can support heavier doors.
2. “Full crank” or inset hinge
This is a type of European hinge that takes its name from the bend in the hinge arm. They are offset from the edge of the door so that the door can sit flush with the cabinet face or box when closed. Inset hinges are good for inset overlay doors and create a sleek, flush look.
3. “Half crank” or partial overlay hinge
Another type of European hinge is also referred to as a half-crank hinge because it has slightly less bend than an inset hinge. The partial overlay hinge is very similar to the inset hinge but is set back from the edge a little further than the inset allowing the edge of the door to overlay the case partially. Use these for partial overlay doors.
4. Full overlay hinge
A full overlay hinge is a type of European hinge with a completely straight arm which makes the offset much greater than partial overlay or inset hinge styles. This allows the door to completely overlay the cabinet box. Use these for full overlay doors.
5. Semiconcealed
Semi-concealed hinges hide the main mechanism of the hinge behind the cabinet door but some of the hinges are exposed on the frame or door edge. The frame wing is visible but the door wing is hidden. Use for overlay doors on face frame cabinets.
