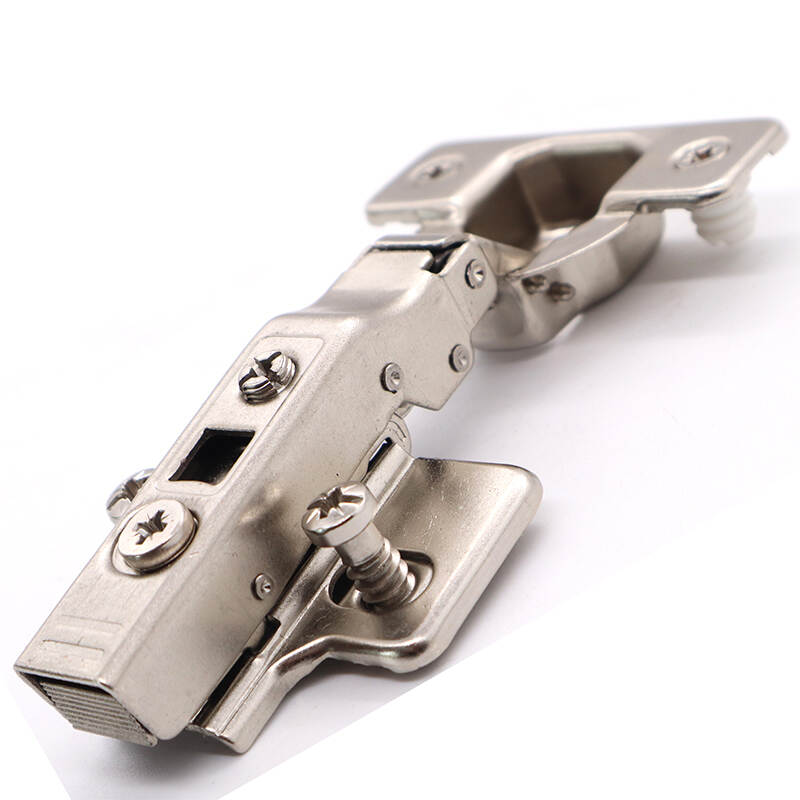

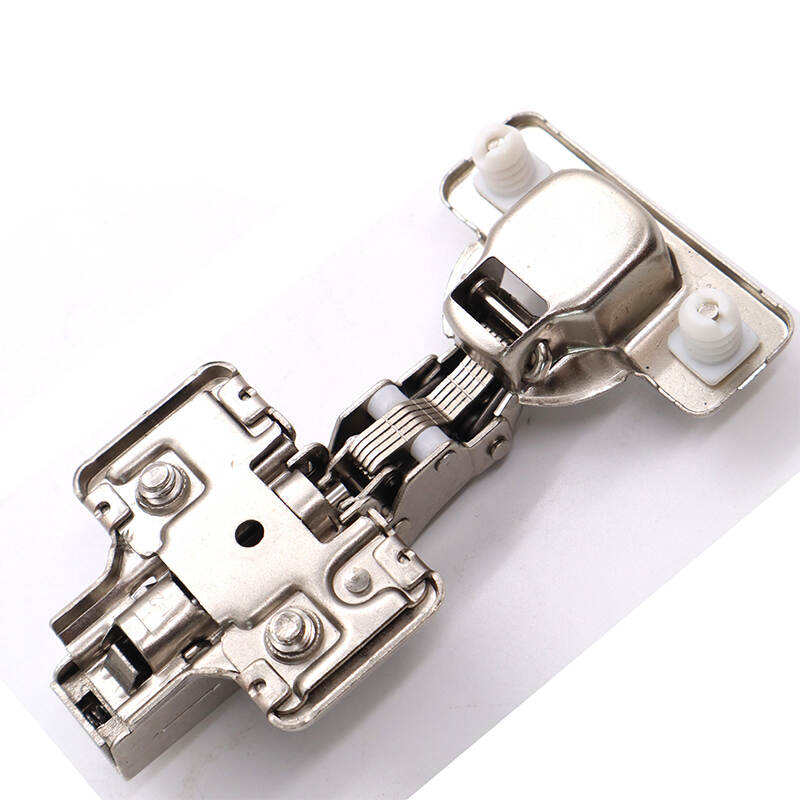

35mm Cup 3D Hinge with dowel Cabinet Door Hinges Wardrobe Dresser Hinges
Quick Details
OEM：
Available
Sample:
Available
Payment:
Other
Place of Origin：
China
Supply Ability：
500000 unit per month
Quick Details
Shipping fee
Shipping fee
Product Description
3D Adjustments
Full overlay face frame hinges are three-way adjustments that will ensure that your new custom cabinet doors are correctly aligned and opened smoothly, making installation faster and more convenient.
Soft Closing
The piston damper and strong spring make the hinge operate smoothly and silently, no more slamming cabinet doors, extending the lifetime of the cabinets and hinges.
Clip-on Function
The clip-on hinge is the easiest and quickest to fit, without any tools, just press the hinged buckle, and you can easily install the hinge on the door and inside the cabinet.
Specification
Overlay type: full, Opening angle: 110 degrees, Diameter cup:35mm, Depth cup:11.5mm, Range of door thickness:14-22mm.
100% Satisfaction
Maybe there is no product that makes you 100% satisfied, but there is a service that makes you 100% satisfied, contact us and you will get a satisfactory answer or refund.
Installation method
1. Installing Hinge to Door
a. Drill a hole 12mm(15/32”) deep for the hinge cup per template using a 35mm boring bit. Do not drill through the door face.
b.Drill pilot holes for screws per template. Do not drill through the door face.
C.Insert hinge on the door and fasten it with screws. Do not over tighten.
2. Installing Mounting Plate to Cabinet
a.Drill pilot holes for screws. Do not drill through the cabinet.
b.Align mounting plate to holes and fasten with screws. Do not over tighten.
3. Installing Door to Cabinet
a. Open hinge to full extension.
b.Connect door to cabinet as shown below
